Dual Lane

Shuttle II Probe

Our Shuttle II Probe is a heavier built probe designed for high volume locations and the constant use required by the ethanol industry, grain processors and terminals. The Shuttle II is a taller unit – 14′, has a longer boom reach – 9′ to 14 1/2′, longer sample head – 9′, uses replaceable bearings at all the wear points, and has the same operator friendly features as our Standard Shuttle Probe.

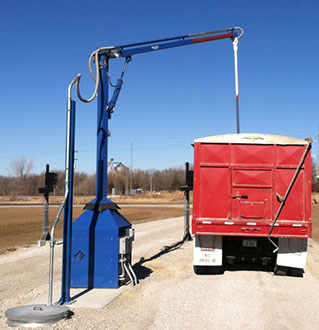

shuttle II probe

Shuttle II Probe

Standard Features

  • Self-contained Design
  • Low Pressure Hydraulics
  • Free-turning Design
  • Hydraulic Pump Timer

Standard Equipment

  • Sample Catch Box
  • Push Button Hand Control
  • Dual Flood Lights
  • Signal Buzzer
  • 9-ft. Pneumatic Sampling Head

Optional Equipment

  • Food grade oil is optional.
  • Replaceable Bearings at All Wear Points
  • Joystick Controller
  • Single or Dual Vac Motors

Technical Specifications

  • Base foot print: 36″ x 36″ deep x 4′ 6″ tall. (8) 3/4″ x 8″ anchors
  • Mast: 6” x 6” x 3/8” square tube
  • Extendable boom: 4 ½” x 4 ½” with 4” x 4” x ¼” telescoping tube
  • Stinger (sample head): 2-1/4” O.D. x 9 ft.
  • Hydraulic system: 3hp 220VAC (single phase), 750psi, 3.8gpm, 2.5 gal. reservoir .
  • Vacuum system: 1hp, 220VAC, 3 stage blower/vacuum pump.
  • Electrical requirements: 30 amps, 208/240VAC single-phase.
  • Probe controls: 12VDC, push-button operation.
